Crystal Video Technology BeamLink Ultimate 4-Ch Wireless Transmission System with Rackmount Receiver & Intercom (500m)
Crystal Video Technology BeamLink Ultimate 4-Ch Wireless Transmission System with Rackmount Receiver & Intercom (500m)

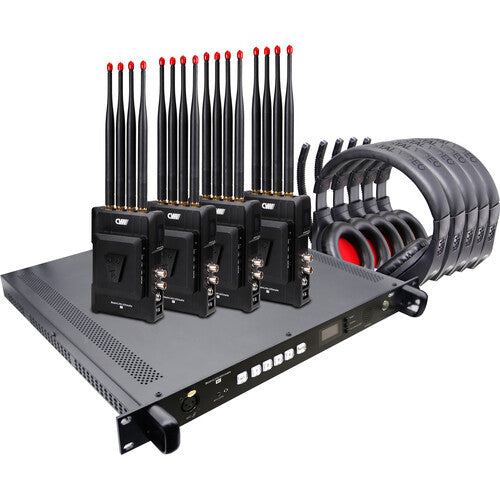

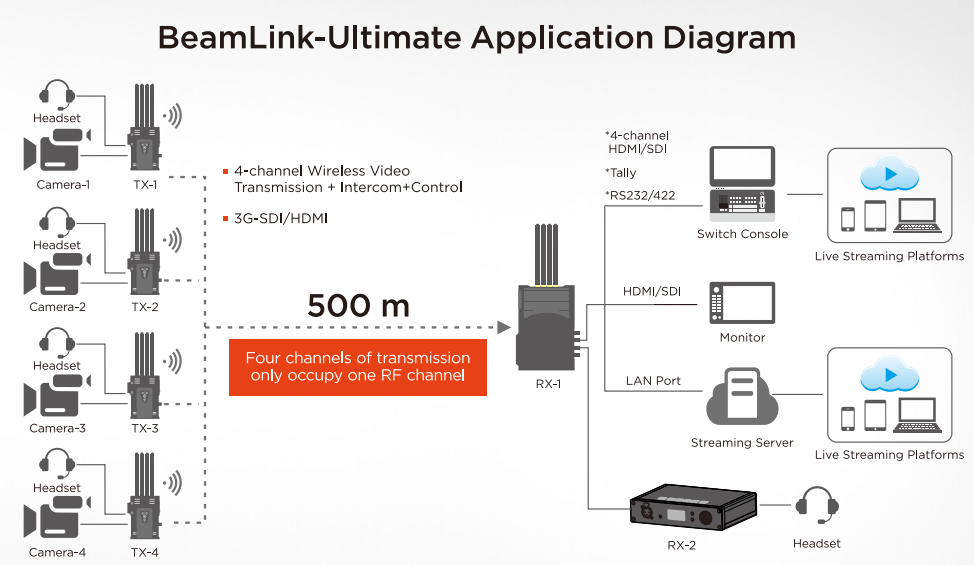

The BeamLink Ultimate 4-Ch Wireless Transmission System with Rackmount Receiver & Intercom from Crystal Video Technology includes four transmitters and one 1 RU rackmount receiver. This system allows you to simultaneously send four 3G-SDI and HDMI signals to the receiver over a range of up to 500m using SDI and HDMI inputs and outputs. Signals up to 1080p60 can be transmitted with a latency of 70 ms over one RF channel on the 5.1 to 5.8 GHz frequency.
The receiver unit also supports a four-channel full-duplex intercom, and it includes a talkback hub, five headsets, and a gooseneck microphone to communicate with the transmitters wirelessly. Four SDI cables, D-Tap power cables, and ball head mounts are all included for the transmitters, and an RS-232 cable is included for remote control.
- Four transmitters with 3G-SDI and HDMI inputs
- Rackmount receiver with four 3G-SDI and four HDMI outputs
- Up to 1080p60 resolution transmission
- 500m line-of-sight transmission range
- Includes Wi-Fi unit to extend transmission onto network up to 800m
- H.265 encoding with 70 ms latency
- Tally signals
- 4x4 MiMO and beamforming technology
- 5.1 to 5.8 GHz frequency between TX and RX
- 802.11ac 5 GHz Wi-Fi standard
- Intercom feature with gooseneck microphone and headset
- Supports IP streaming (RSTP)
- RS-232 data transmission
- Easy setup
