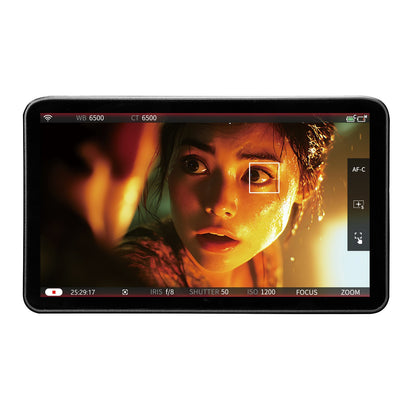

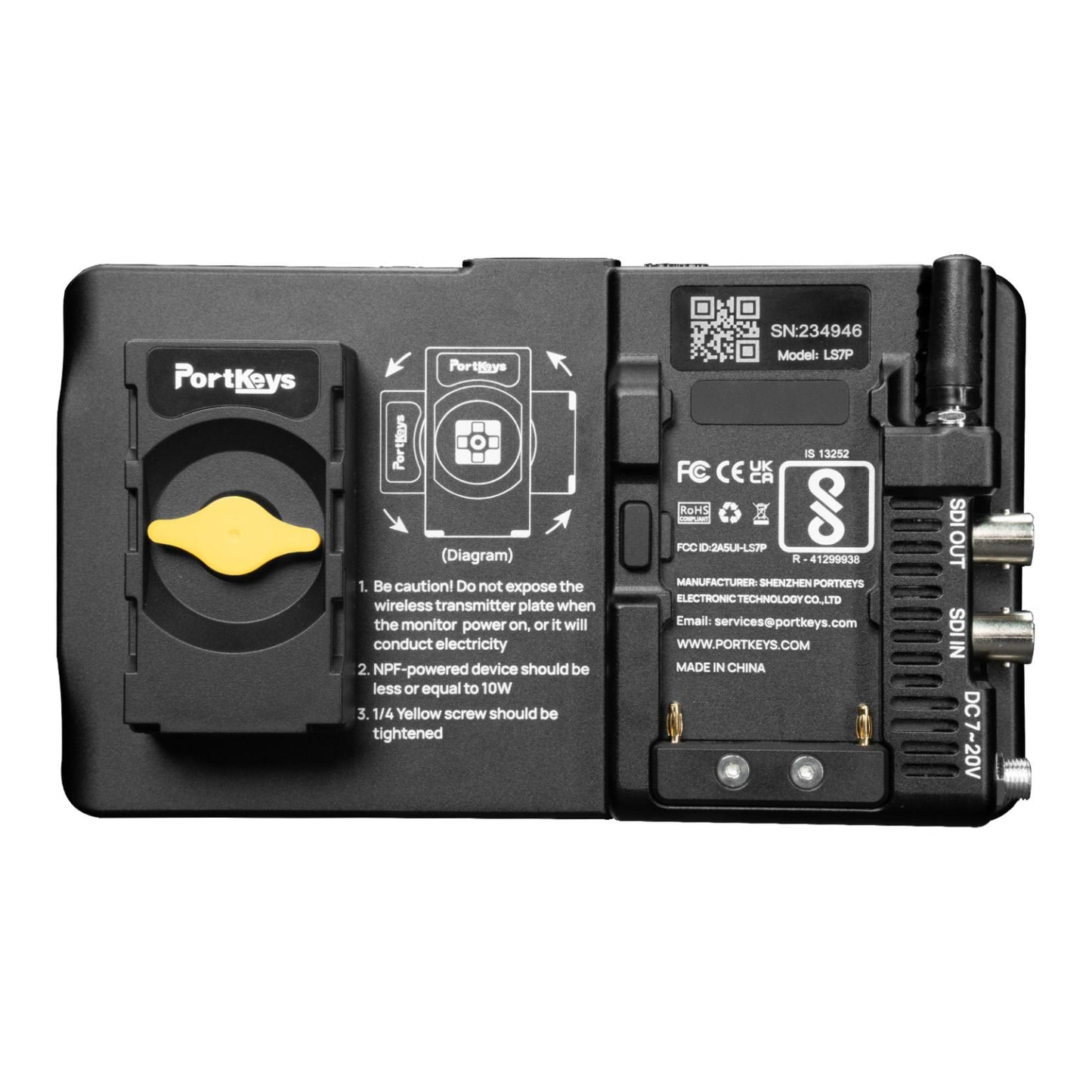

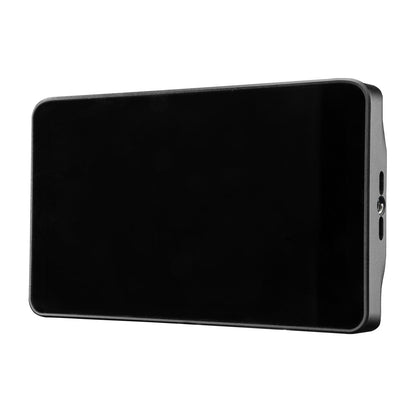

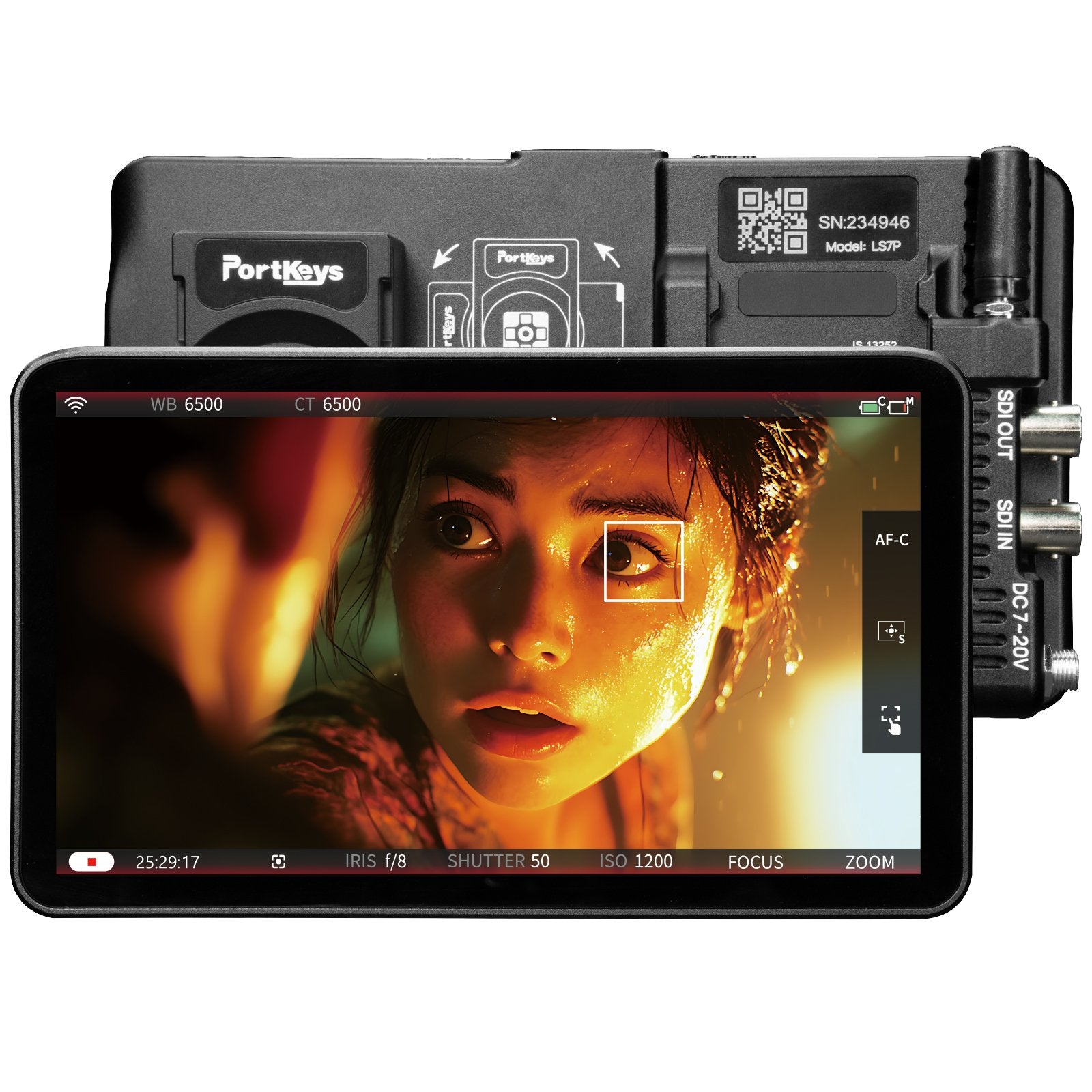

Portkeys LS7P 7″ SDI Camera Monitor for Filmmaking

The Portkeys LS7P is a rugged 7-inch on-camera monitor featuring 1,000 nits of brightness, HDMI/SDI video input and output ports, and wireless camera control capabilities.

Key features:

• 7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight-viewable with a maximum brightness of 1,000nits.
• 1 x 4K30P HDMI input, 1 x 3G-SDI input, 1 x 1080P60 HDMI output, 1 x 3G-SDI output, cross-conversion from SDI input to HDMI output is possible.
• Powered by MOVNORM OS.
• Professional monitoring tools: Log Stops, Waveform, Histogram, Zebra, Vectorscope, Peaking, ARRI False Color, Anamorphic image de-squeeze, Audio Meters.
• 3D LUT monitoring and 3D LUT output capabilities.
• Wireless camera control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and Blackmagic Design cameras.

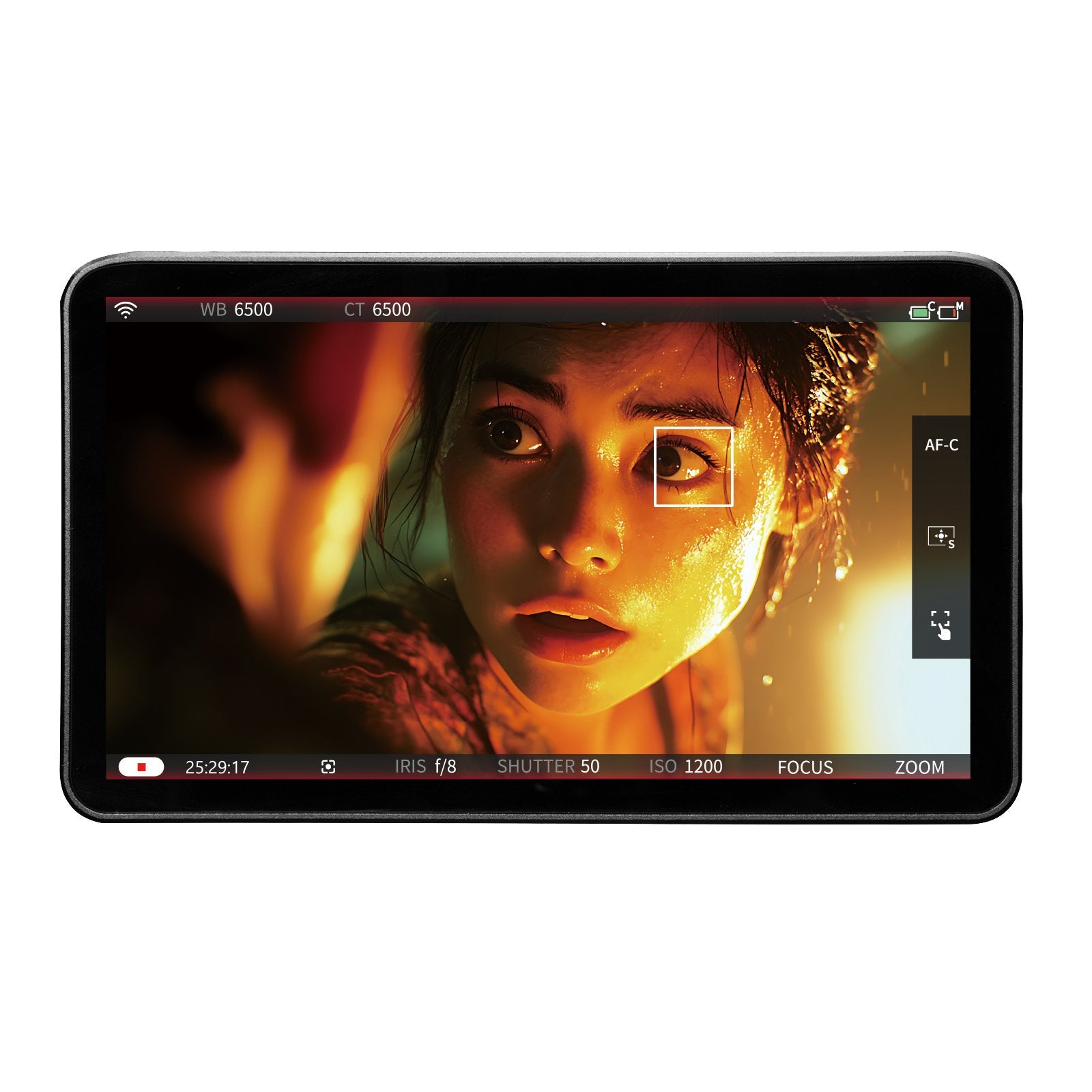

• Touchscreen autofocus (wireless) feature is available for select Sony, Nikon, RED, Canon, Panasonic, and Blackmagic Design cameras, including the Sony FX3/FX6, Sony a7S III, Canon EOS C80, and EOS C400.
• Built-in Sony NP-F style battery plate.
• DC 7-24V 5.5mm barrel connector power input for external power (D-Tap cable included).

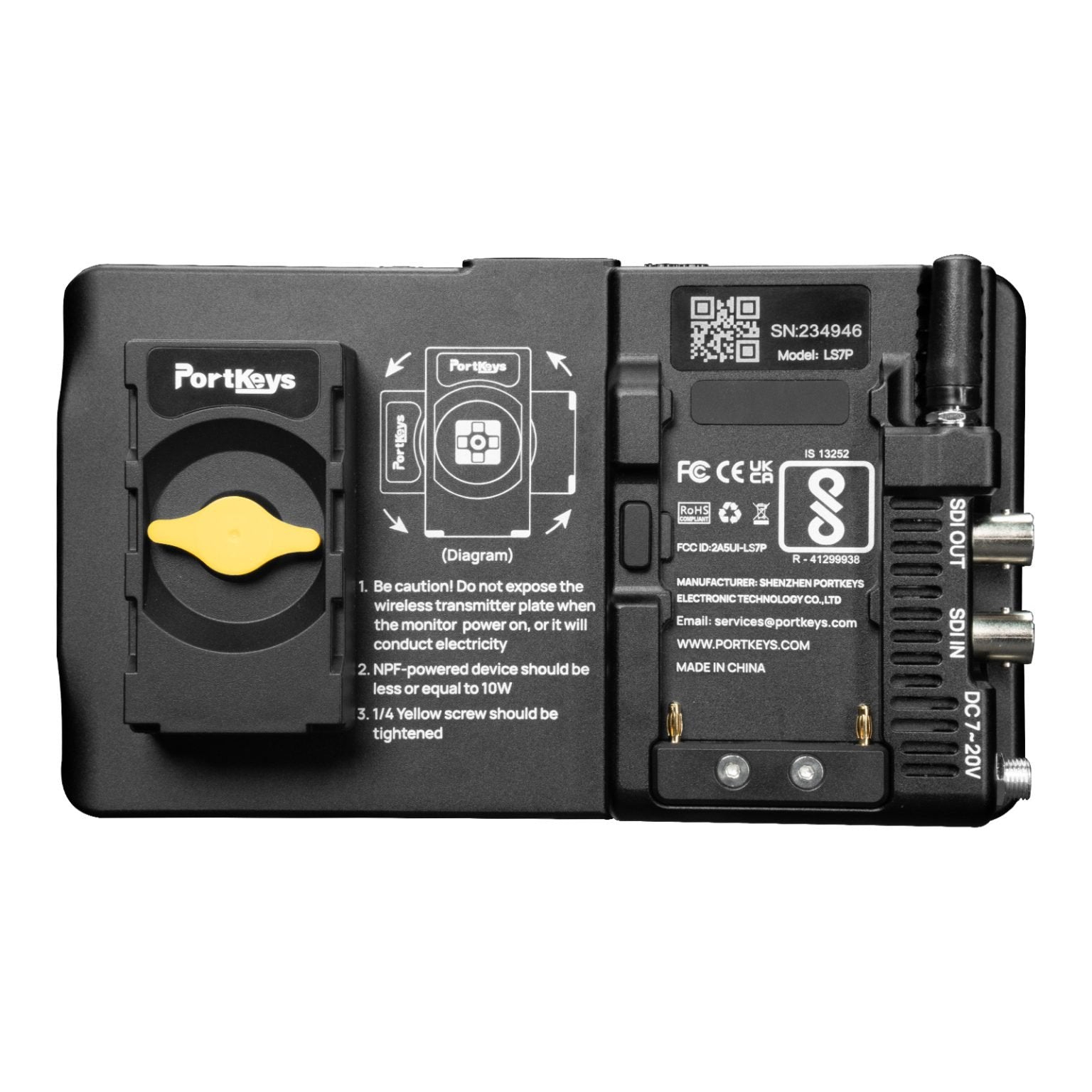

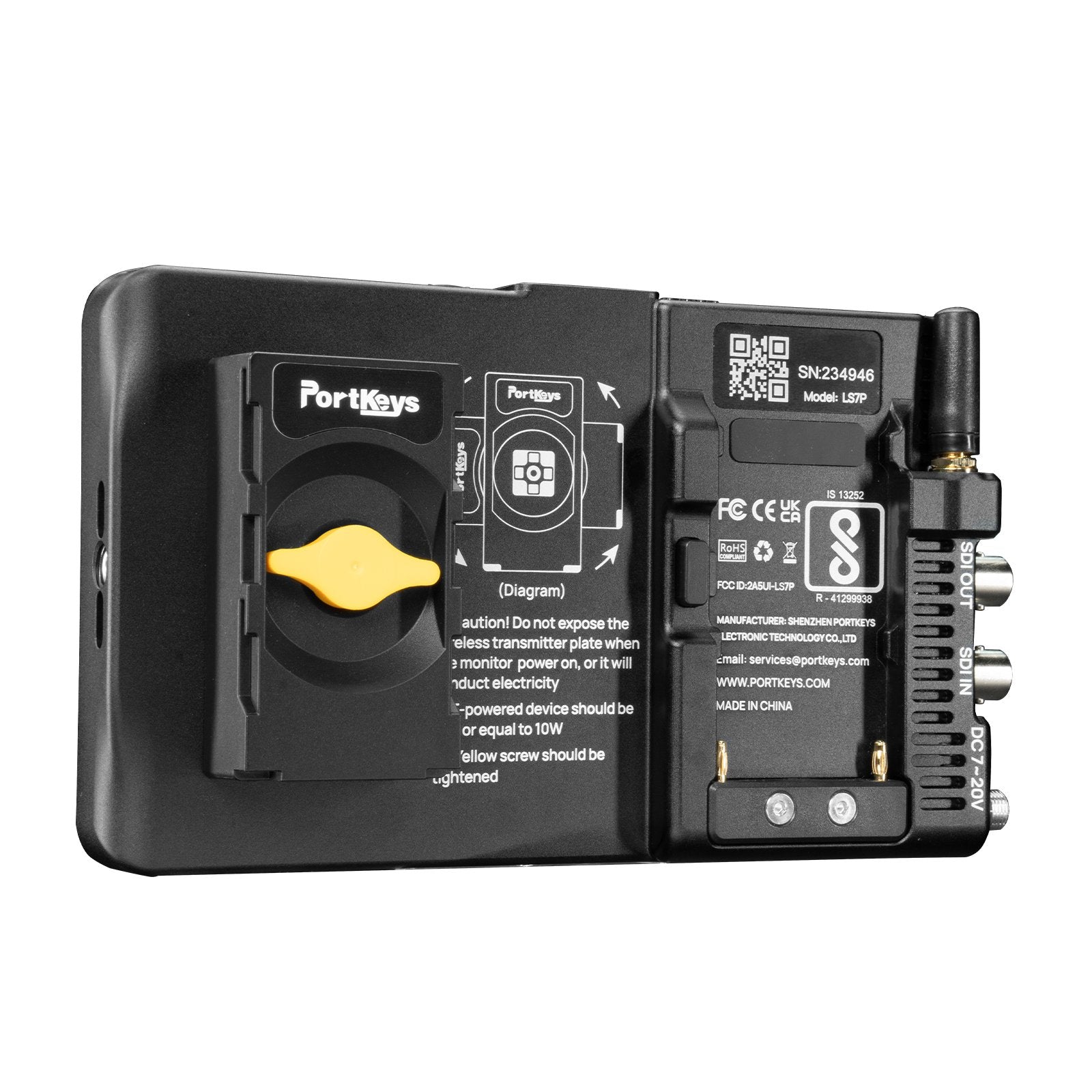

• Built-in Sony NP-F dummy battery plate with power passthrough(8V/10W) to attach and power a wireless video receiver at the back of the LS7P.

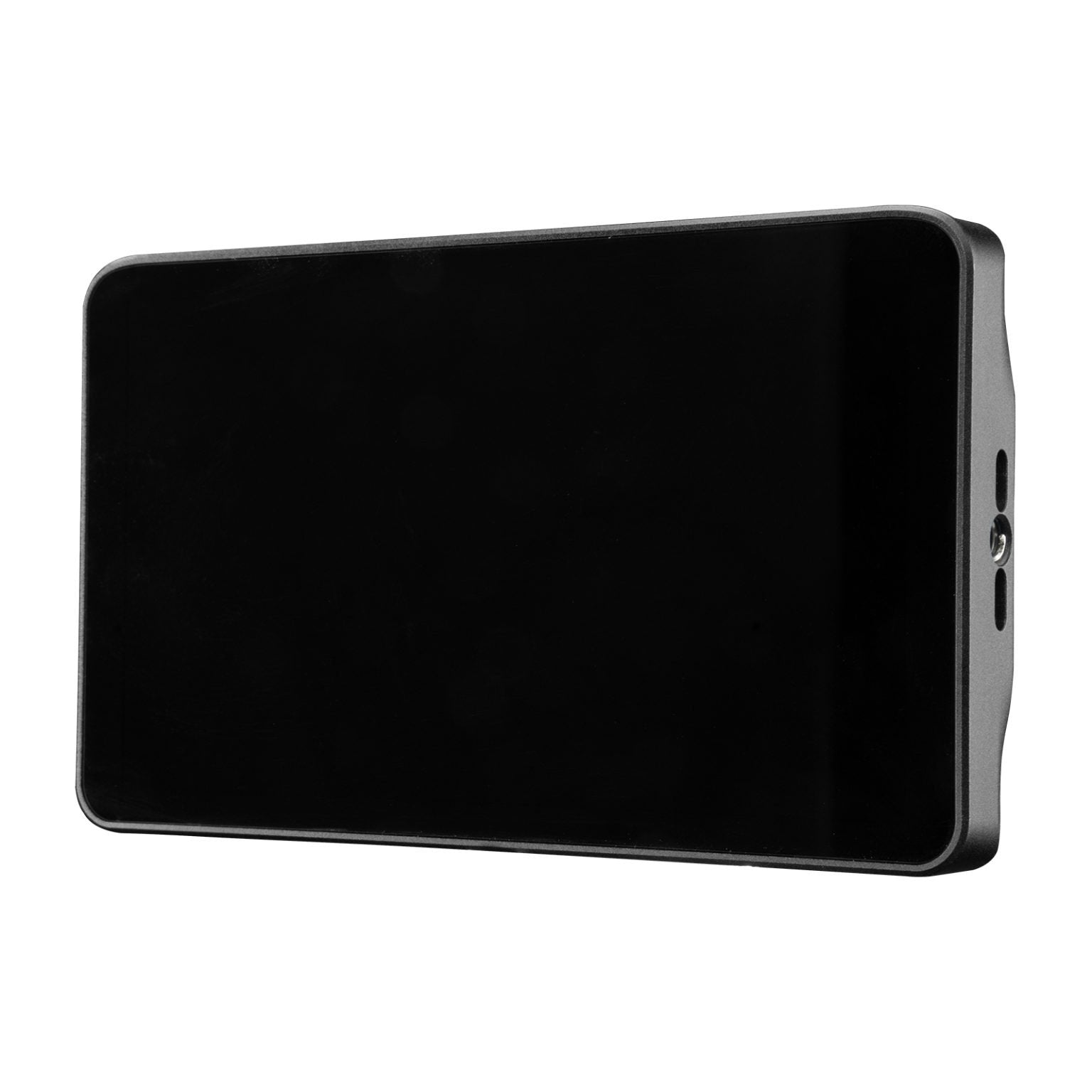

• Lightweight and rugged aluminum housing: only 409g/14.42oz.
• Factory color-calibrated, each monitor undergoes individual factory color calibration in REC.709, ensuring accurate color reproduction right out of the box.
